Wall Panels

Standard Metal Wall Panels

Standard PBR Panel
Standard PBR Profile Standard PBR Profile steel building panel
Application Roofs, Walls, Fascias, Soffits
Coverage Widths 36″
Rib Spacing 12″ on Center
Rib Height 1 & 1/4″
Gauges 26 (standard); 22, 24, 29 (optional)
Minimum Slope 1/2:12
Panel Attachment Exposed Fastening System
Finishes Smooth (standard); Embossed (optional)
Coatings see colors here.

PBR Panels are a 36″ functional wall system that provides durability and cost efficiency.Traditional looks are achieved by its clean profile that refracts light off its 1 1/4″ high ribs. The attachment of the panel is made from the exterior with color matched fasteners. Available in standard 26-gauge and comes in a multitude of colors. The girt-bearing leg design makes panel alignment and fastener engagement consistent. PBR wall fasteners are coated with a material that tests seven times more resistant to rust than the typical cadmium-zinc coated fasteners.

Air Infiltration: Tested per ASTM E283 with no leakage.
Water Penetration: Tested per ASTM E331 with no water penetration.

Insulated Metal Wall Panels

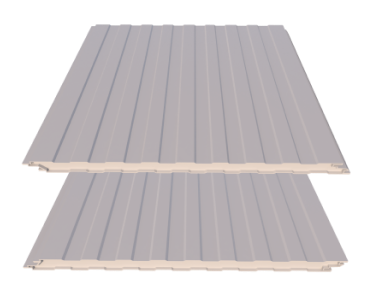

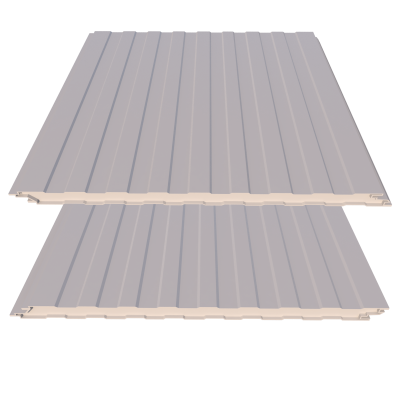

Basic Mesa Panel
Insulated Metal Panel Basic Fluted Panel (Wall, Vertical)

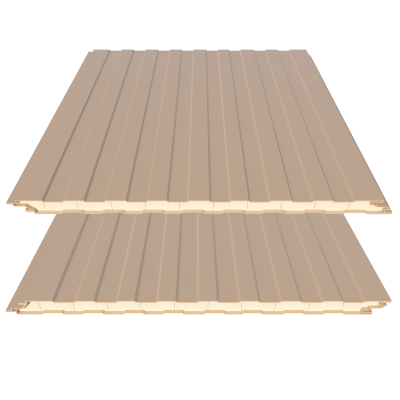

Enhanced Fluted Panel
Insulated Enhanced Fluted  Panel Enhanced Fluted Panel (Wall, Vertical)

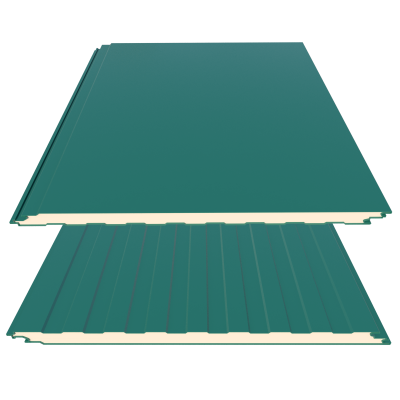

Standard Embossed Panel
Insulated Metal Panel Standard Embossed Panel (Wall, Vertical or Horizontal)

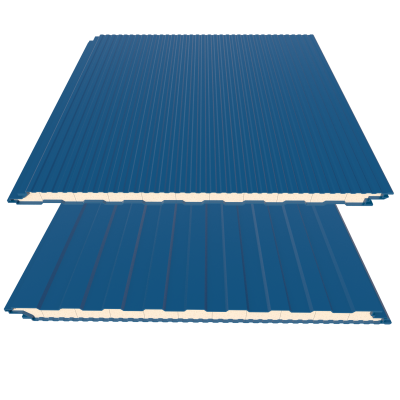

Striated Panel
Insulated Metal Panel Striated Panel (Wall, Vertical or Horizontal)

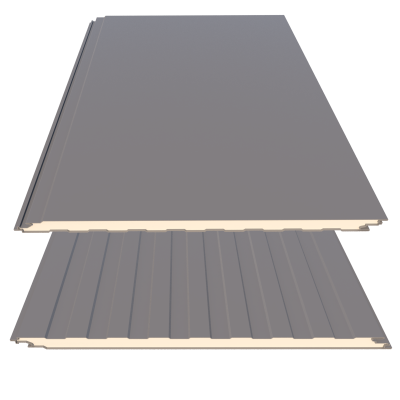

Textured Panel
Insulated Metal Panel Textured Panel (Wall, Vertical or Horizontal)

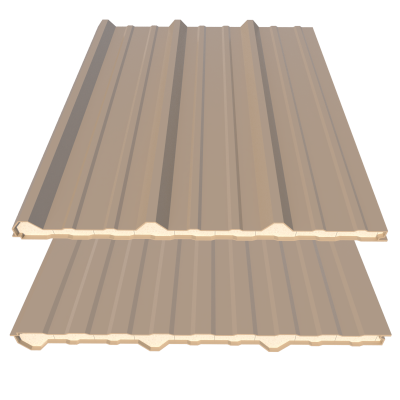

Exposed Fastener Utility Panel
Insulated Metal Panel Exposed Fastener Utility IMP (Roof and Wall)

Architectural Metal Wall Panels

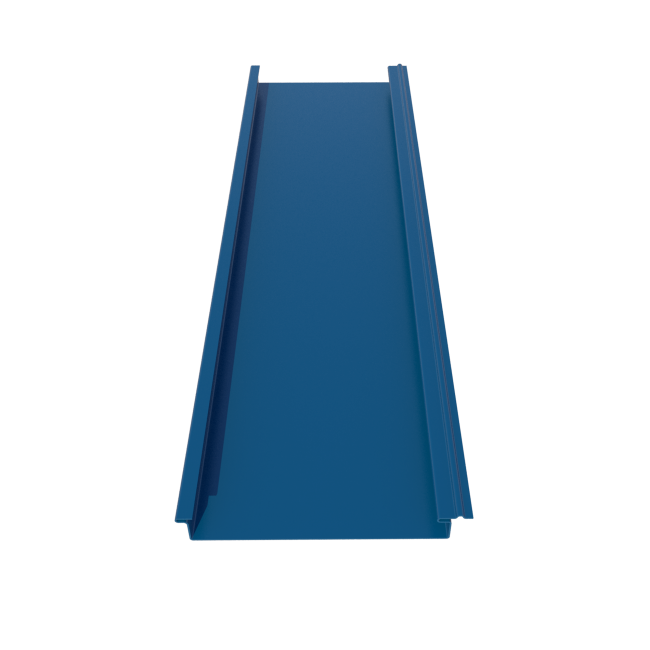

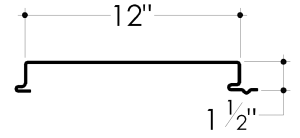

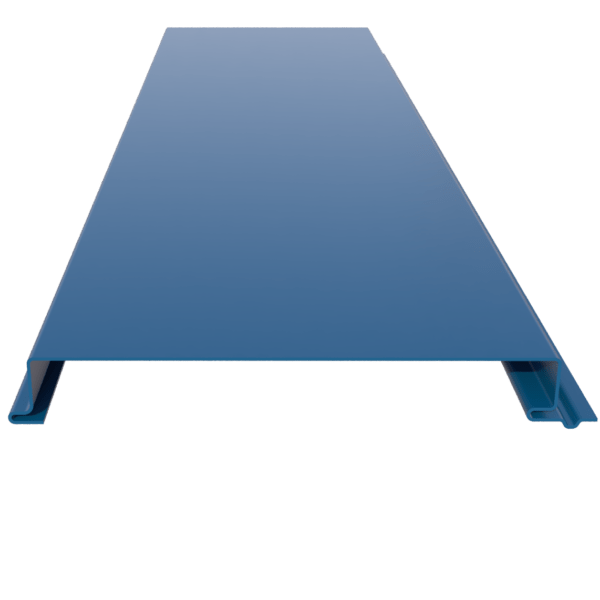

Concealed Fastener Architectural Panel
Concealed Fastener Architectural Panel Concealed Fastener Architectural Panel
Application Wall, Fascia
Coverage Widths 12″
Gauges 24 (standard); 22, 20 (optional)
Panel Attachment Concealed Fastening System
Finishes Smooth (standard); Embossed (optional)
Coatings see colors here.

Allied CF panels are a concealed fastener wall system that provides performance and compatibility. Clean, contemporary looks are achieved by the 1 1/2″ deep sculptured profile, embossed texture, and interior attachment. Available in 24 or 22-gauge steel and formed into a 16″ wide 3″ deep section. Allied CFW panel comes in 27 colors and resists damage and abuse. Other Panels are available upon request. Contact a Building Services Group representative at 888.864.8666 for further information.

Air Infiltration: Tested per ASTM E283 with no leakage.
Water Penetration: Tested per ASTM E331 with no water penetration.

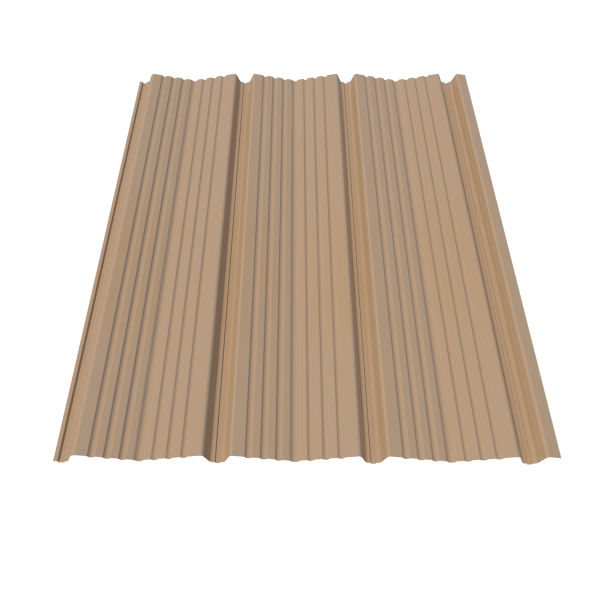

Architectural Direct Fastened Panel
Architectural Direct Fastened Panel
Architectural Direct Fastened Panel
Application Wall
Coverage Widths 36″
Rib Spacing 12″ on Center
Rib Height 1 & 1/8″
Gauges 26 (standard); 22, 24, 29 (optional)
Panel Attachment Exposed Fastening System
Finishes Smooth (standard); Embossed (optional)
Coatings see colors here.
